CabMasterPro User Guide

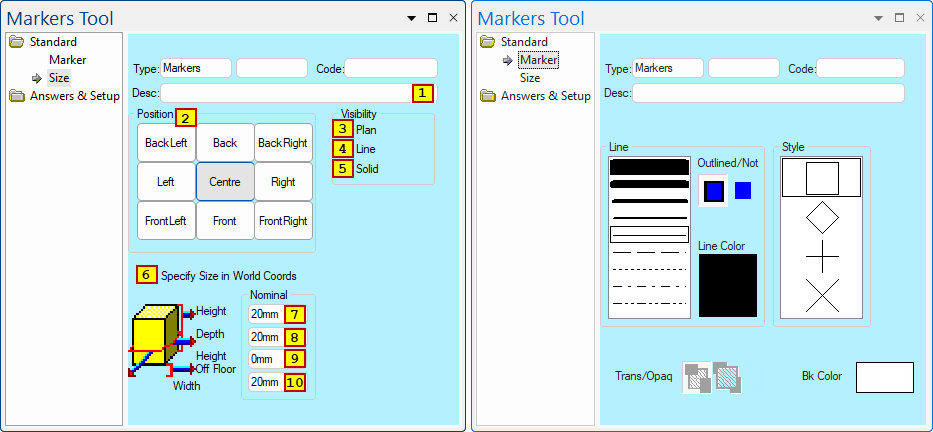

Any controls on this page which can be accessed with a formula are marked with a reference number.
To view the variable name, hold your mouse over the control or click on
the control to look up the reference in the table below.
For more information on other pages or categories, simply click on the area of interest.
To find out what this property page is used for, see discussion on Markers under Drawing Tools.
| Ref | Variable Name |
|---|---|
| 1 | Desc |
| 2 | LabelPos (see Notes) |
| 3 | IsVisiblePlan |
| 4 | IsVisibleLine |
| 5 | IsVisibleSolid |
| 6 | SpecifySizeinWorldCoords |
| 7 | Height |
| 8 | Depth |
| 9 | HeightOffFloor |
| 10 | Width |
The Marker page is similar to the Rectangles Tool options.
When Outlined (HasPen) is turned on, the Line Color can be selected and applied to the Style and Width.
These are controlled by the same drop list, as shown.
