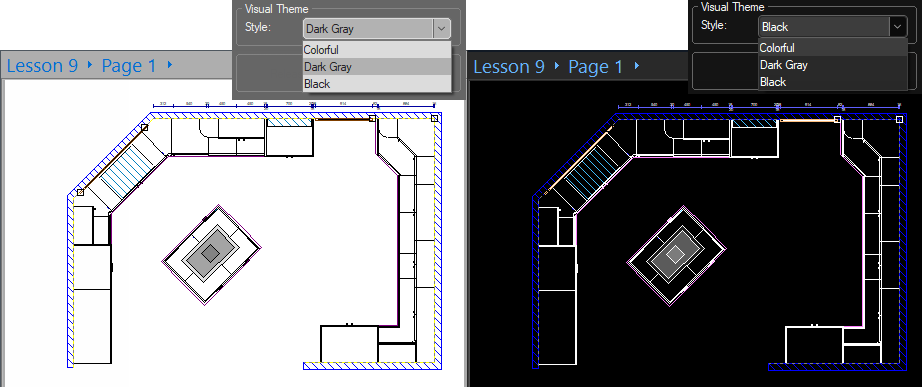

Available from the File menu > Options or use Keyboard Shortcut F10.

On New Drawing

These two checkboxes control whether CabMasterPro the following are automatically displayed upon opening a new drawing.

Apply template dialog - If you do not use a template every time you start a new drawing, you can untick this option.

Drawing Properties - If enabled, allows you to override the global defaults set in the Catalog properties for the current job.

Use Library - The default is the <currently selected> library (normally CM-Cabinets) but the drop list allows you to select another available library.

Automatic Updates

If "Check for updates" is enabled, CabMasterPro will silently attempt to contact the CabMasterPro website every time you start the program. It checks if any later versions of CabMasterPro are available and informs you if there are.

"Check announcements" does not tell you about new versions of the software, but does let you know if any important CabMasterPro announcements have been made.

It is recommended you leave both of these options ticked.

Automatic Saves

The AutoSave feature can be turned On/Off. If turned ON, this handy Autosave feature automatically saves your drawing at the specified time interval, and can be a life saver if your computer crashes. Use the text box to specify a time in minutes, or enter zero to disable autosave. The only reason you would want to disable this is if saving a drawing takes too long and interrupts your work.

And with Autosave turned on, you'll see the naming of the autosave files as they keep saving into your Backup subfolder. If instead you use task manager to kill CabMaster, then when you restart and load the drawing it will realise there's a later drawing automatically saved and offer to restore that instead for you. If CabMasterPro exits abnormally e.g. if you use task manager to 'End Task' for CabMasterPro, you can recover the drawing at its last autosave by following these steps:

• Start CabMasterPro and select "Open existing drawing" from the start up dialog.
• In the Open dialog and go to the CabMasterPro > Backup folder.


  Backup folder



• Open the most recently modified file, it will be a .qid file.
  • Sort files by Modified date by clicking the column heading. (If you need to, from the "Files of type" list, select "All Files").
• Make sure it is the correct drawing, then use Save As to save it back to the normal drawings folder.


  Data folder



Length Units

Select which units of measurement will be used throughout the program: for component sizes, dimension lines, etc. The two most common settings are millimetres and inches (See tutorial on Imperial Measurements).

Only applicable with Developer AddOn: The "First dimension is height" checkbox is used to set which of the dimensions on the Component Details page is considered to be the height of the component. When this is checked, the dimensions are height/width/thickness otherwise they are width/height/thickness. When you create a new component the default names for the component dimensions will be based on this flag. It also affects the usage of the EdgeSideCode2L2S property, which is discussed on the Post-Process page.

Pages and Printing

• Page Size: Allows for manually setting page size i.e. not using default printer to auto set page size and scale. A typical scenario when this would be helpful is when a plotter or large printer is used for plan and 3D drawings, and a smaller page printer is used for reports. The drop list allows you to select ...
  • <from printer> i.e. any reports will be printed as per the printer setup that is used for drawings.
  • A4 i.e. 297mm x 210mm (a smaller page) used for reports;
  • Custom allows you to enter the X:Y paper size required.
• Force landscape: CabMasterPro usually changes your default printer page to landscape mode for plan and 3D views. If you want the default orientation as portrait, untick the "Force landscape" check box.

Cloud License

Release: To release a license, click on the button to revoke your cloud license from computer.

Long/Short timeout: Cloud license times out while Offline.

: Short timeout - Unchecking this option will enable "short" (30 minute) checks which ensures that after this short delay you can forcibly reassigned your license to a different PC. Useful if you want to work on a different PC e.g. at home instead of the work office.

: Long timeout - Checking this option will enable a "long" (7 days) delay. This means that you will only have to be connected to the internet once every 7 days, allowing you to work offline in between times. (Useful if you have a poor or intermittent internet connection). The downside is that you will need to manually "Release" if you want to reassign your license to a different PC.

An internet connection is required to acquire, release or change your timeout option.

INFO Cloud License Timeouts

Language

A translations file contains text that can be translated for the interface of the application. Each line corresponds to one piece of text. Translation files can be used to change the wording for a small handful of terms e.g. if you want to localize terminology [color/colour]. Or it can be used to change the language display e.g. English to Chinese.

There are 3 tab separated fields per line.

• The first field provides some context about where the text was found.
• The second field is the original text, and
• The third field is the translated value.

  A line, where the first field is "Special" and the second is "FriendlyName", defines the name of this language within the dropdown box on the options page. The optional "Special" line provides a friendly name for selecting this translation file manually.

  All files within the ProgramFolder, whose names start with "translations" will be recognised as translations files, as shown below.

  Example Translations Files



• Translation text file in ProgramFolder.


  Example: CabMaster translated into Chinese

  The following example shows Cabmaster translated into Chinese.

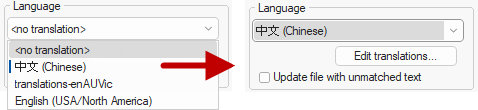

• Result when selected as language option.
